Description

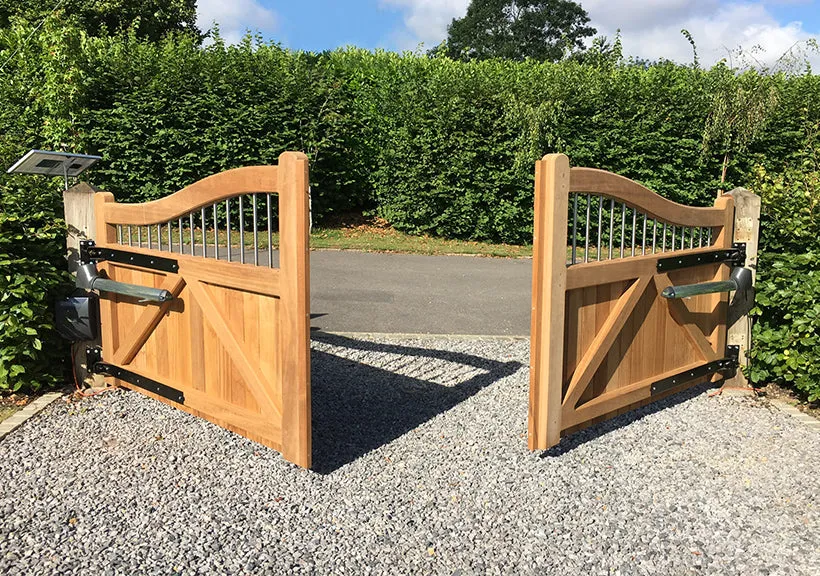

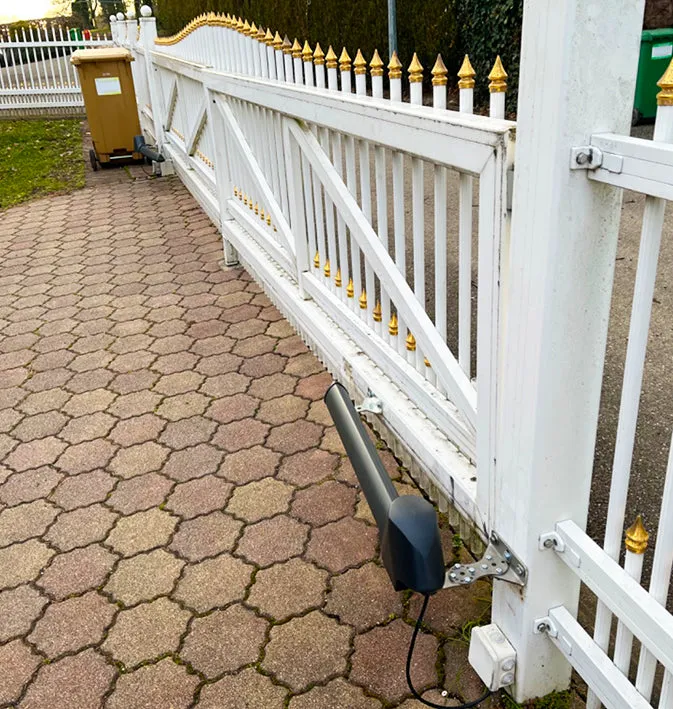

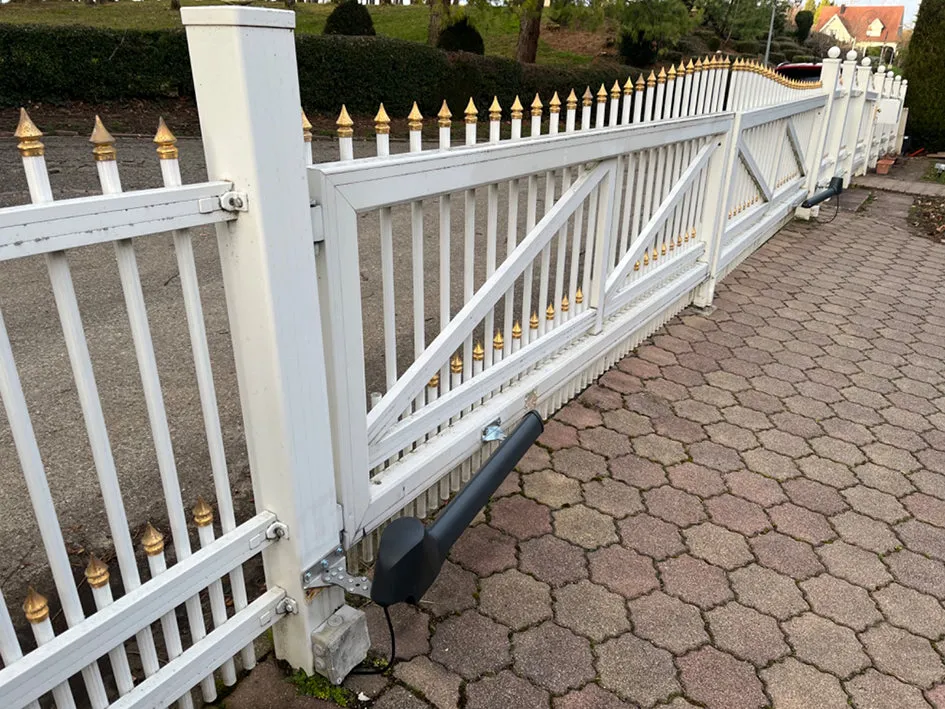

Ideal for double wing gate up to 4m/350kg
(total gate length up to 8)
Ensures 100% autonomous use even where AC power is unavailable
DUCO FAST technology (24V version)
- Quick closing and opening
- Open your door faster than ever!
- powerful & reliable 24V high speed motors faster than ever. ensures faster opening and closing of your door
- The perfect answer where rapid manoeuvres are required, ensuring the shortest standing time and the maximum safety: for urban high-traffic areas ensures prompt action where rapid intervention is needed.
DUCOSOL Technology
Versatile, operates by 3 type of power supply
- A.C. 110/230V 60/50Hz
- By emergency battery
- By solar panel
Highly reliable as featured with Ducati's low consumption technology DUCOSOL: with only 7mA stand-by consumption ensures long lasting performances in all weather condition. Ideal for residential use. Up to 50 cycles daily guaranteed . No additional modules requires: it's all included: on board solar panel & battery recharge management!
SOFT STOP
- The opener stops in both directions decreasing the speed and avoiding unwished banging closing.
- This prevent from usury and ensure long life to your opener and door.
- This function prevents the door banging closing
ARS (Automatic Reversal System)
Thanks to the integrated amperometrical detection system and direction sensor, the opener is provided with an automatic reversal system in case the gate reaches an obstacle, the opener stops immediately and reverses automatically. Highest safety is ensured.
DUCO SAFE
obstacle detection safety system guarantees maximal safety of use to your family
SELF LOCK TECHNOLOGY

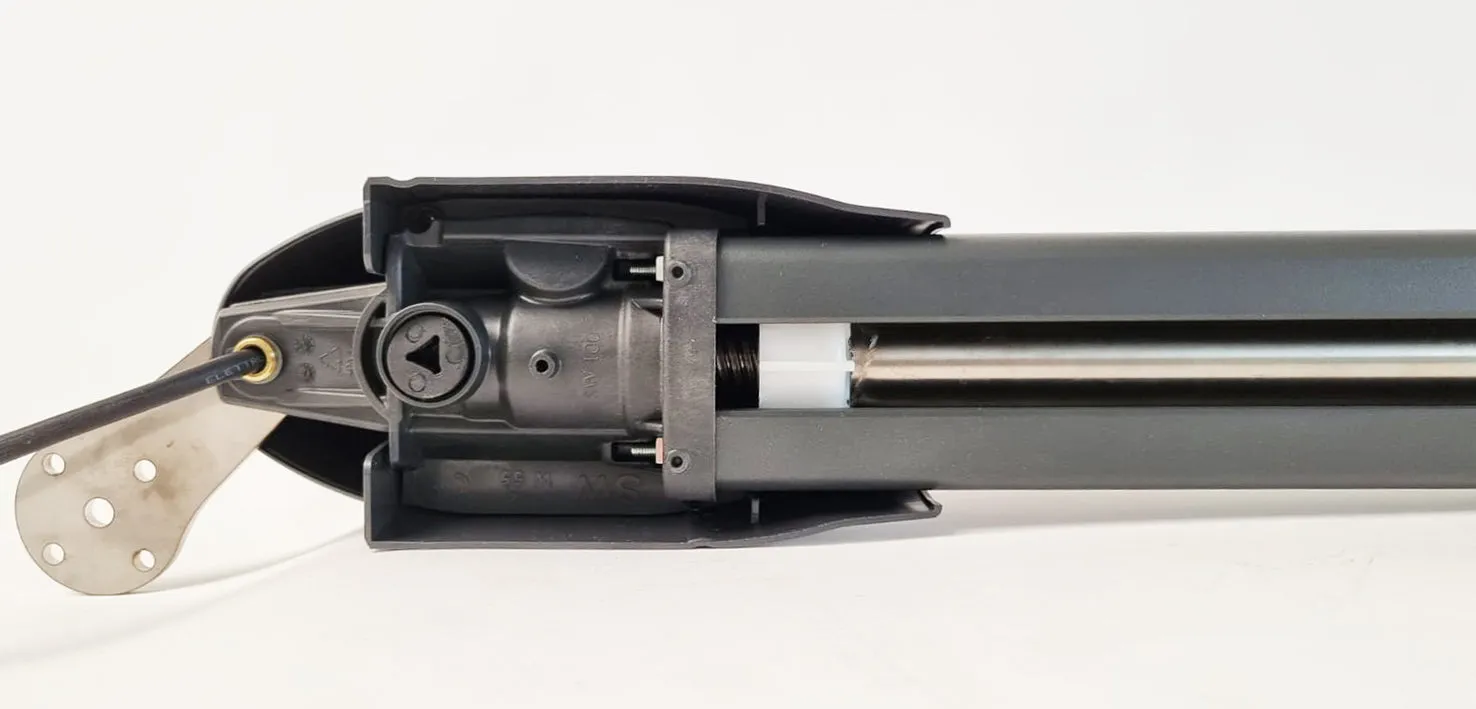

The self-locking properties of the spindle increase the protection against a dangerous and unauthorized “pressing” of the gate and the otherwise necessary e-locks for the final positions can be omitted. A massive 20 mm diameter three principle steel spindle made of PR80 steel ensures long and reliable operation
Kit Contents

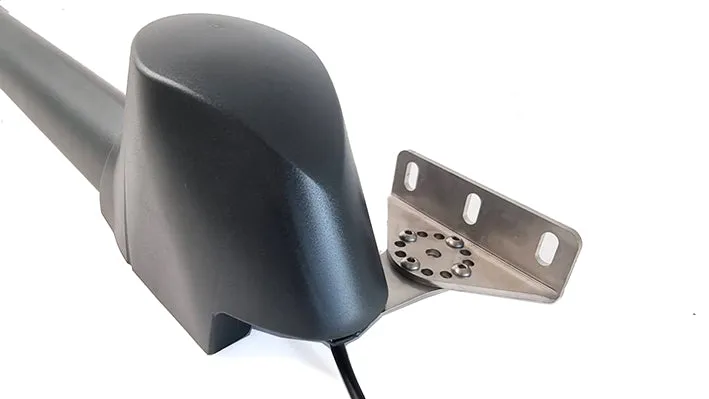

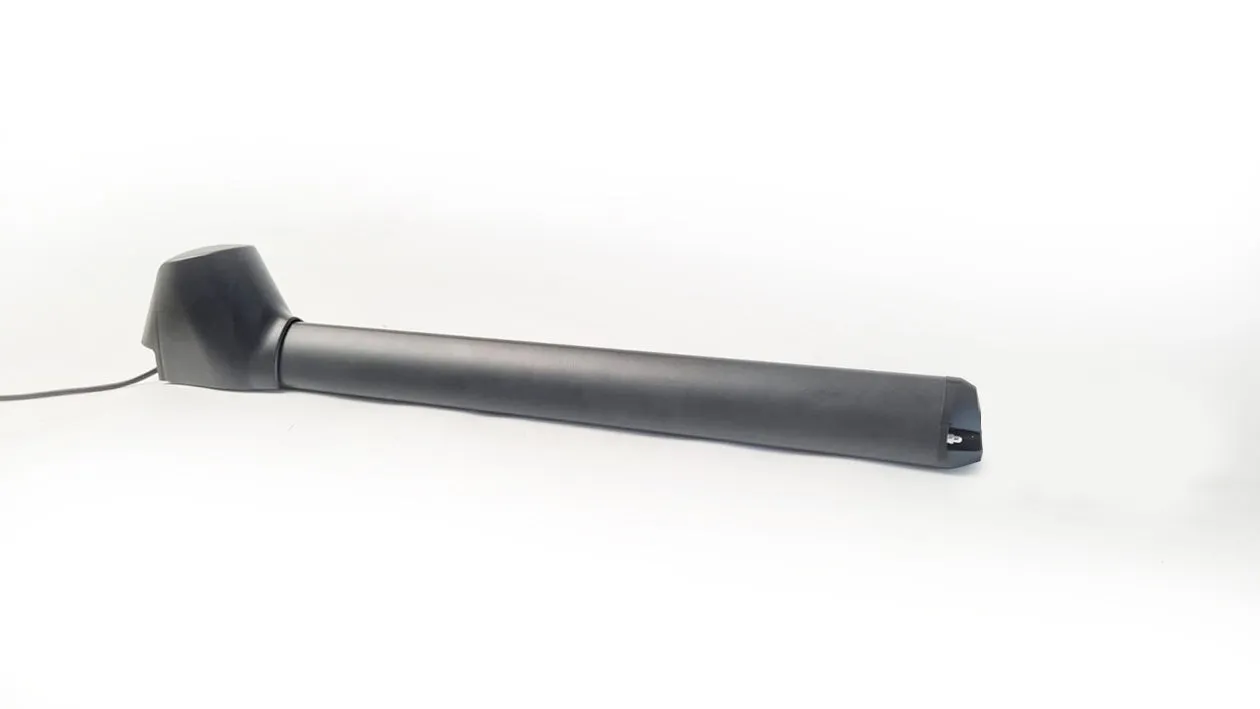

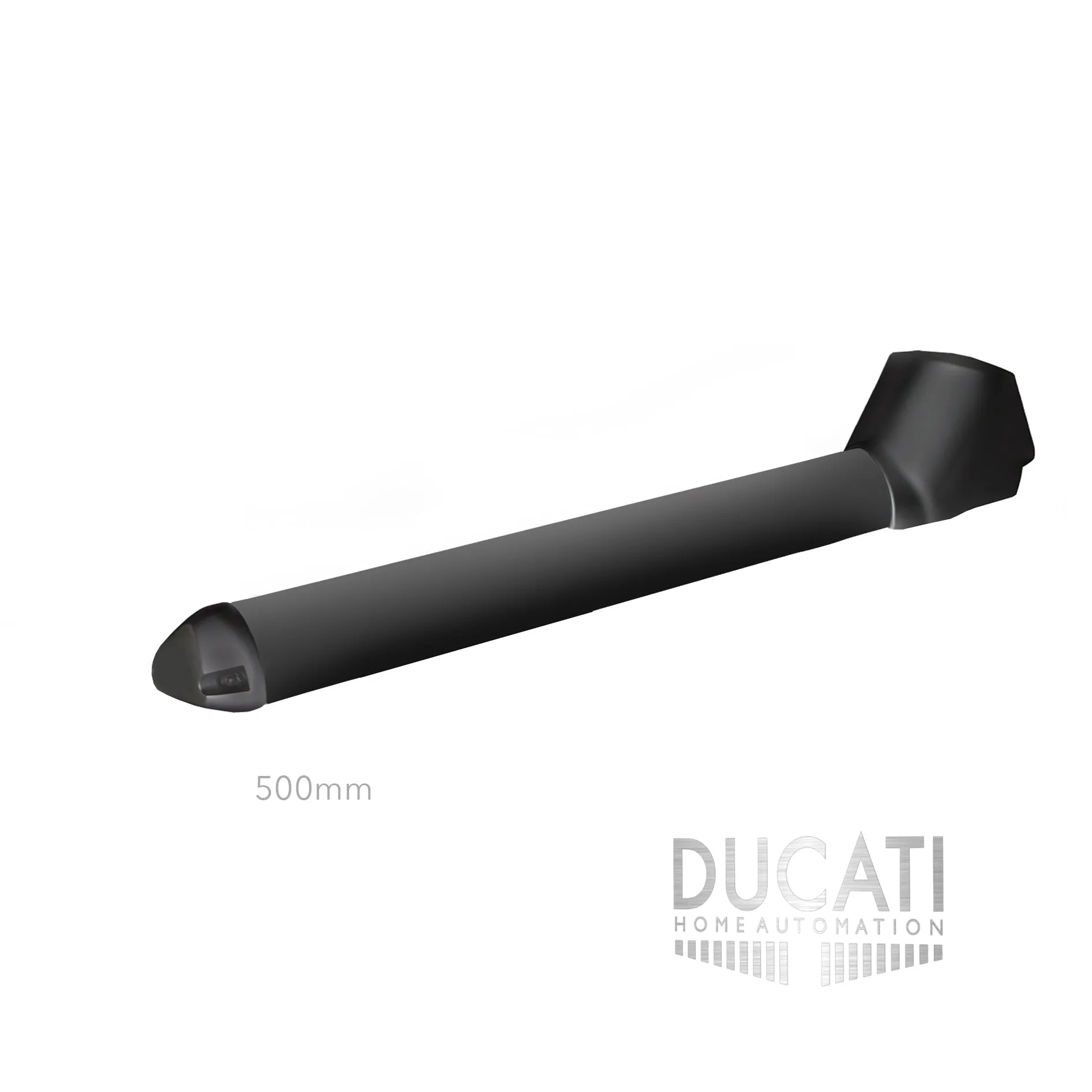

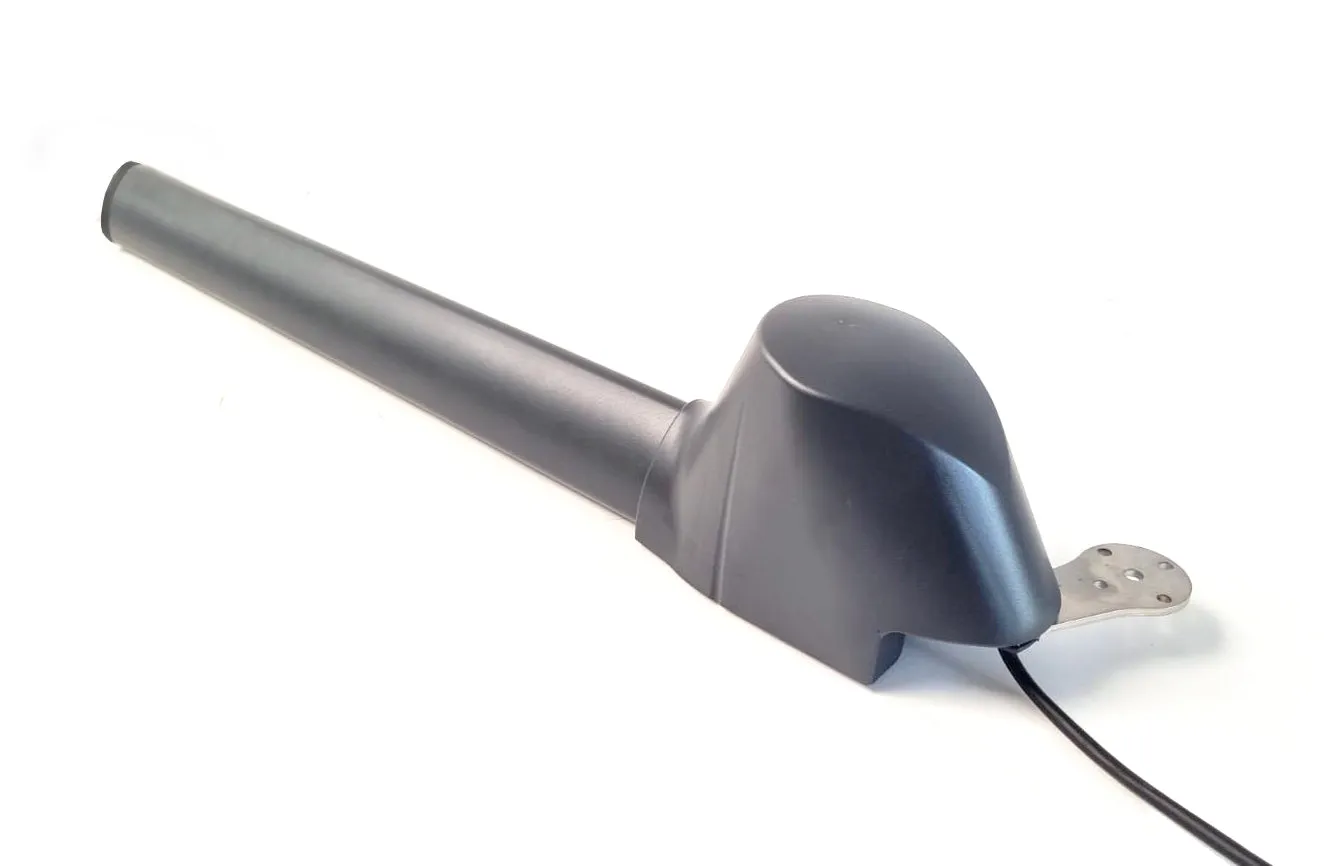

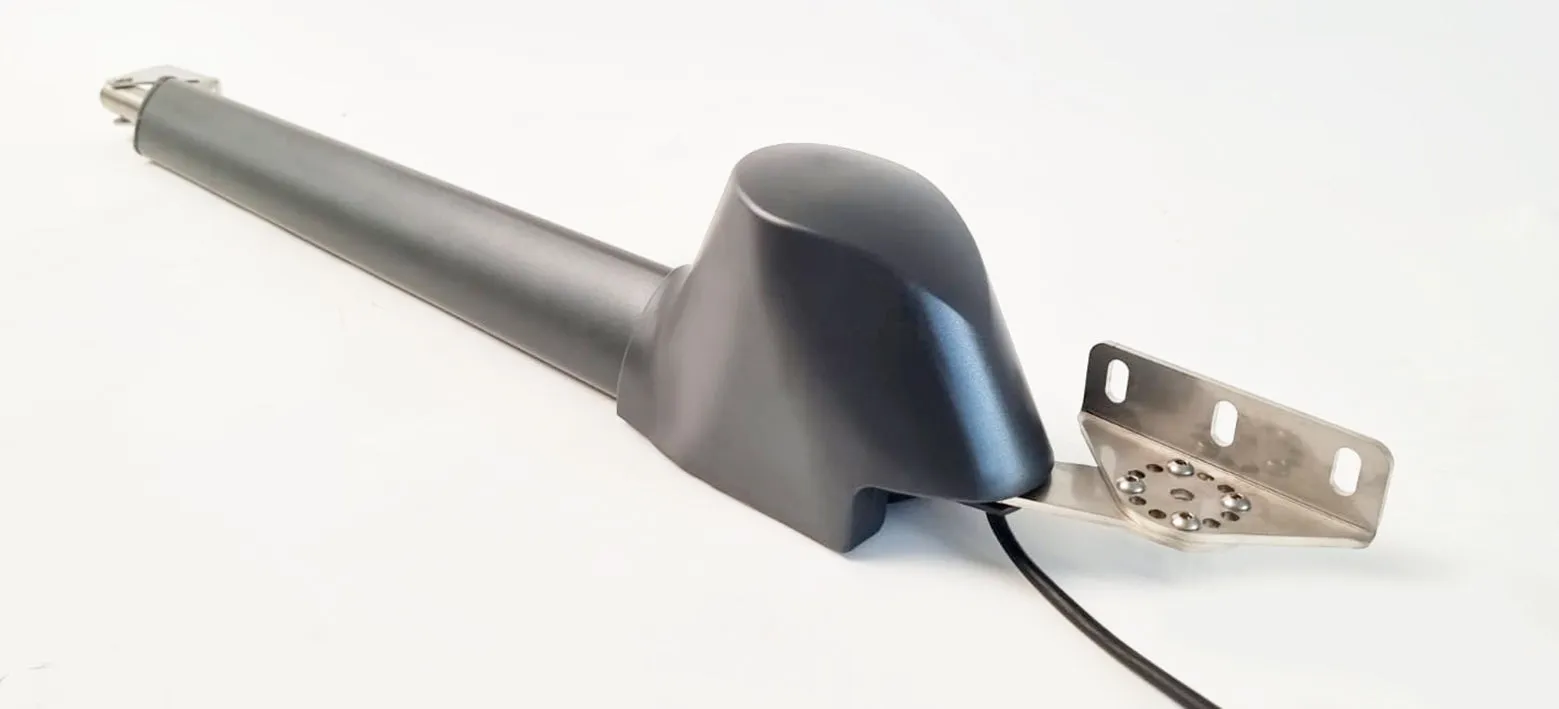

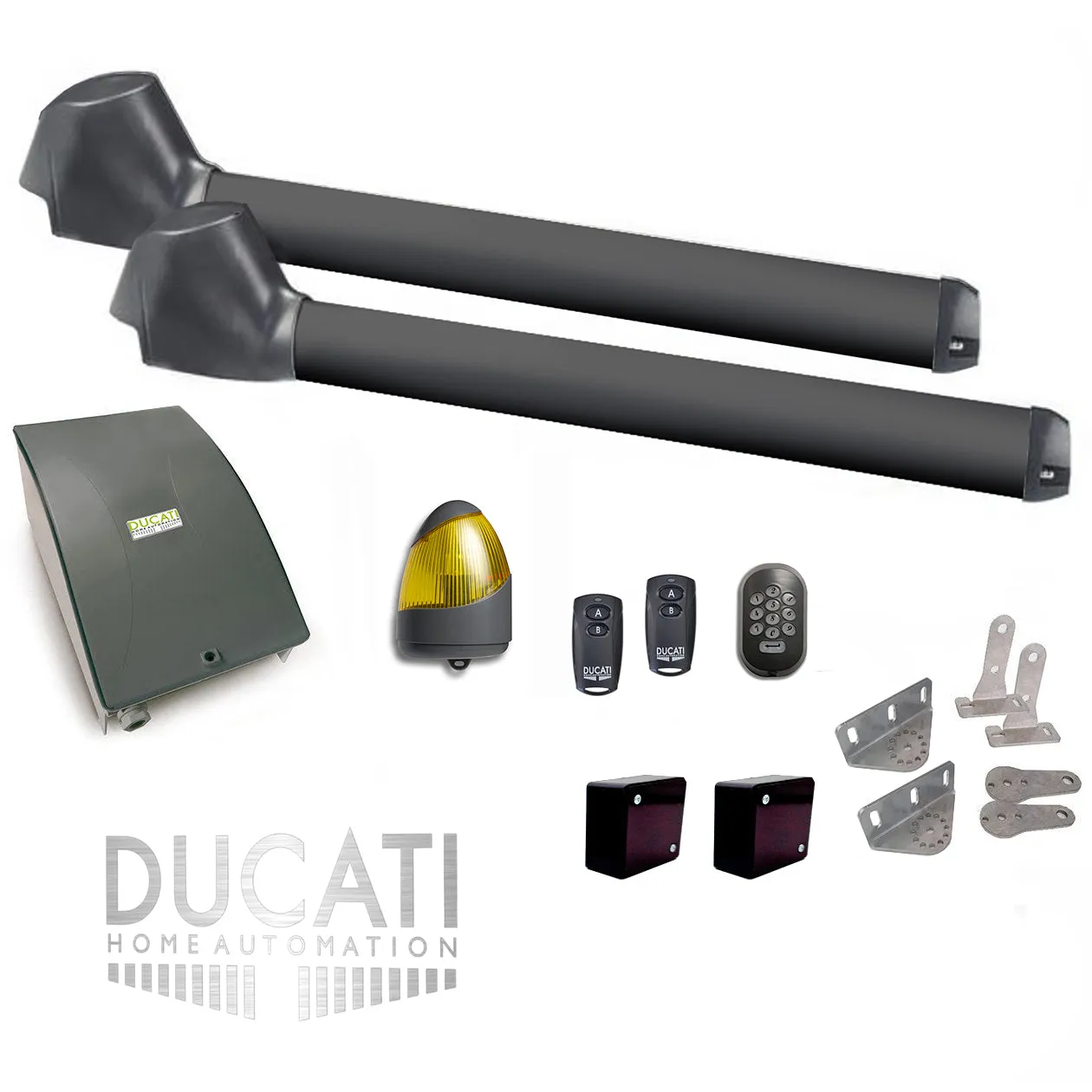

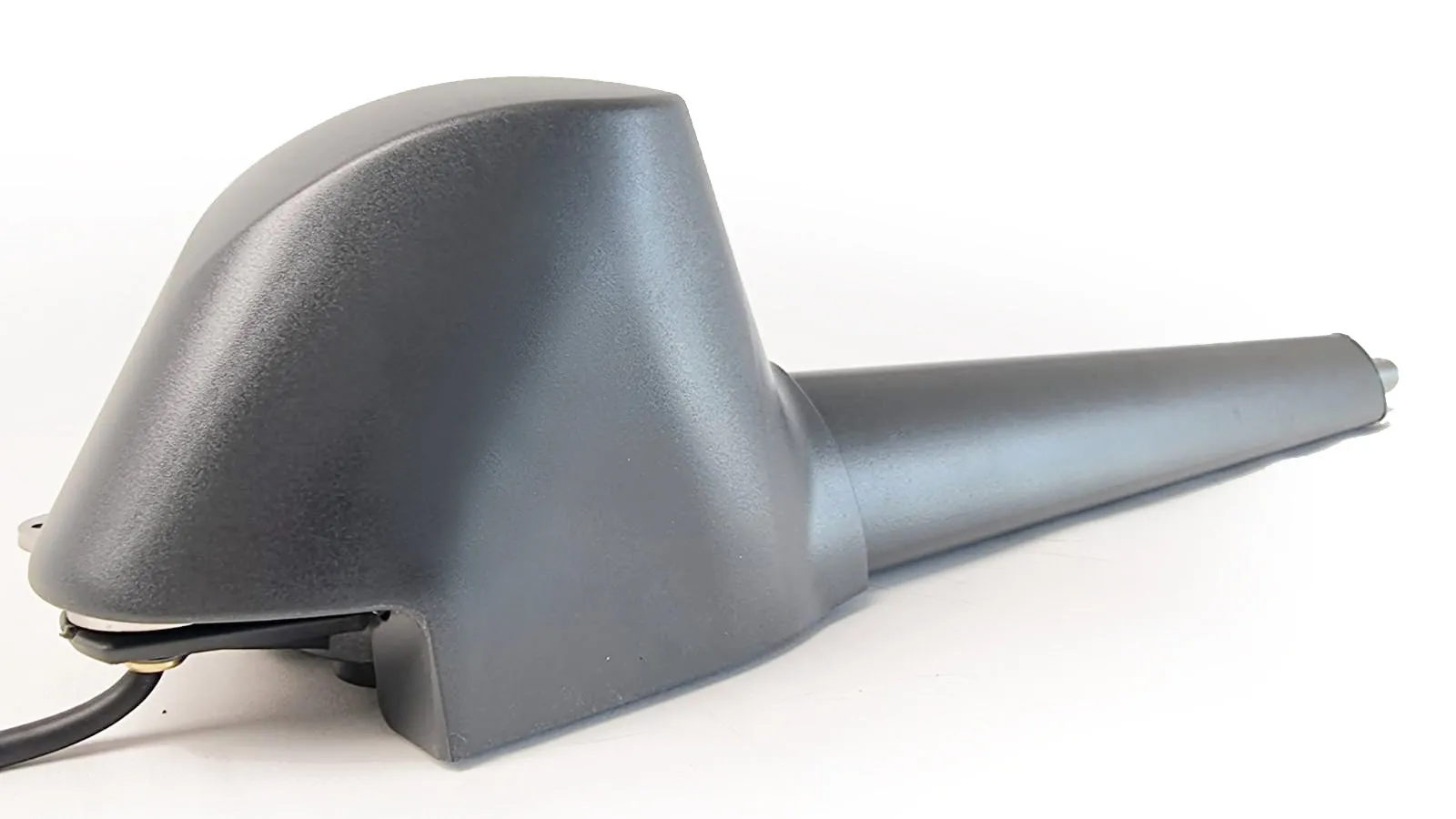

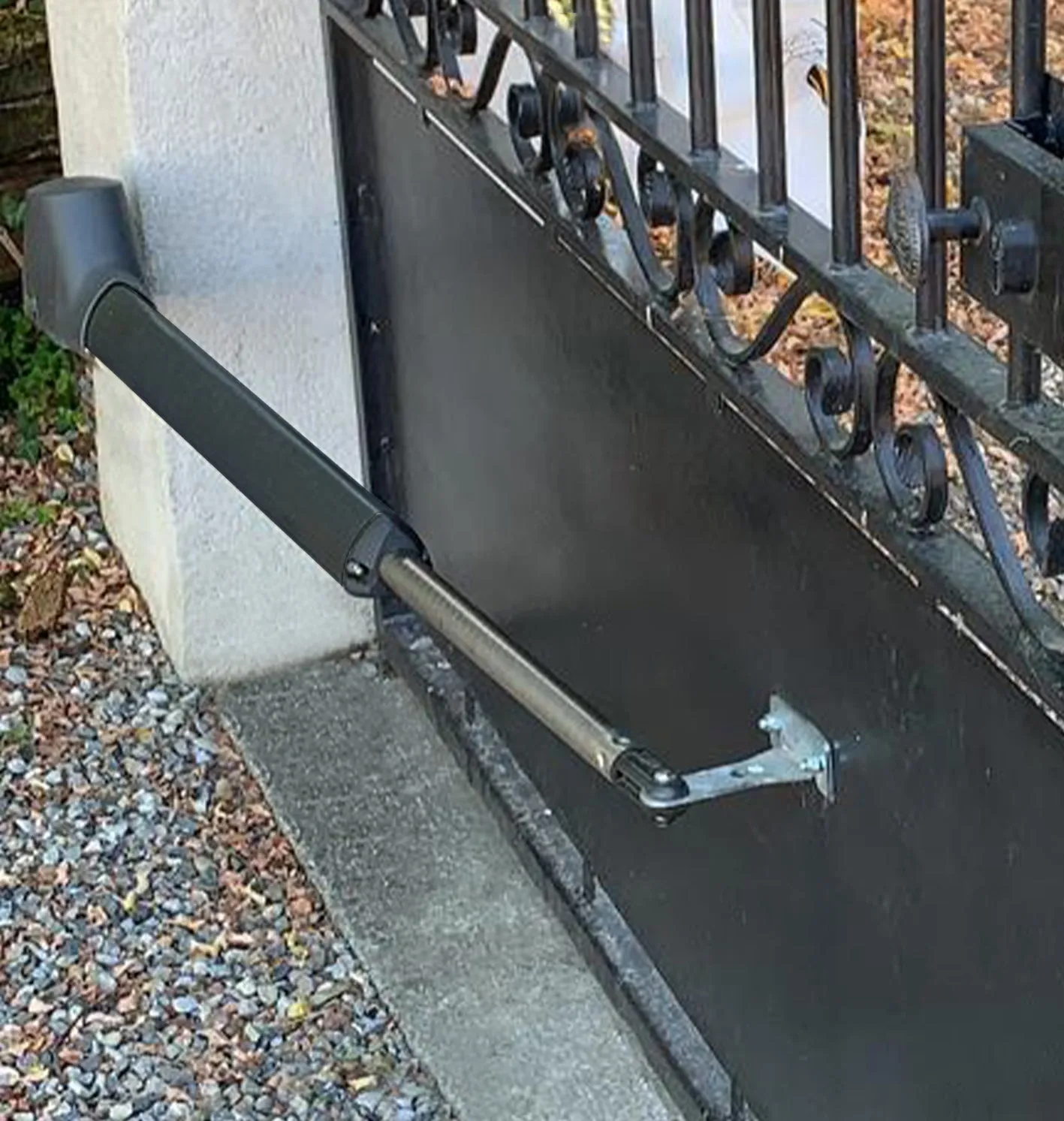

- 2x EVO 700 500mm stroke 12V ( 24V version also available) electromechanic irreversible actuators supplied with 1 m outdoor use cable H05RN-F 2 x 1mmq

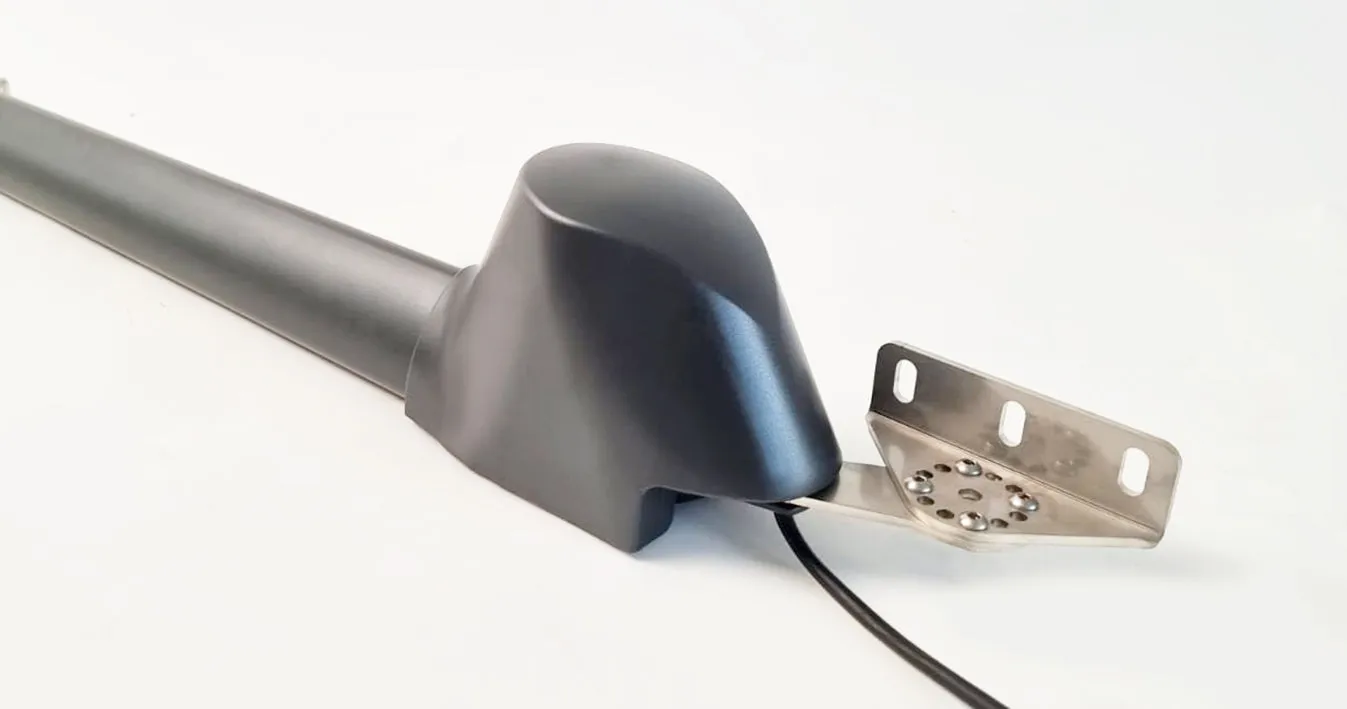

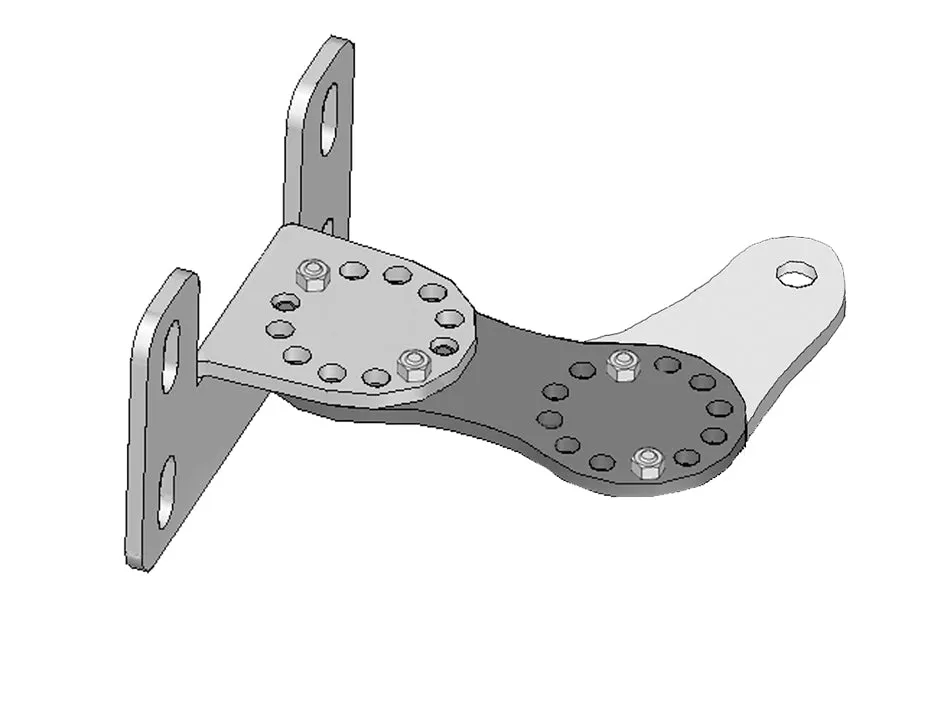

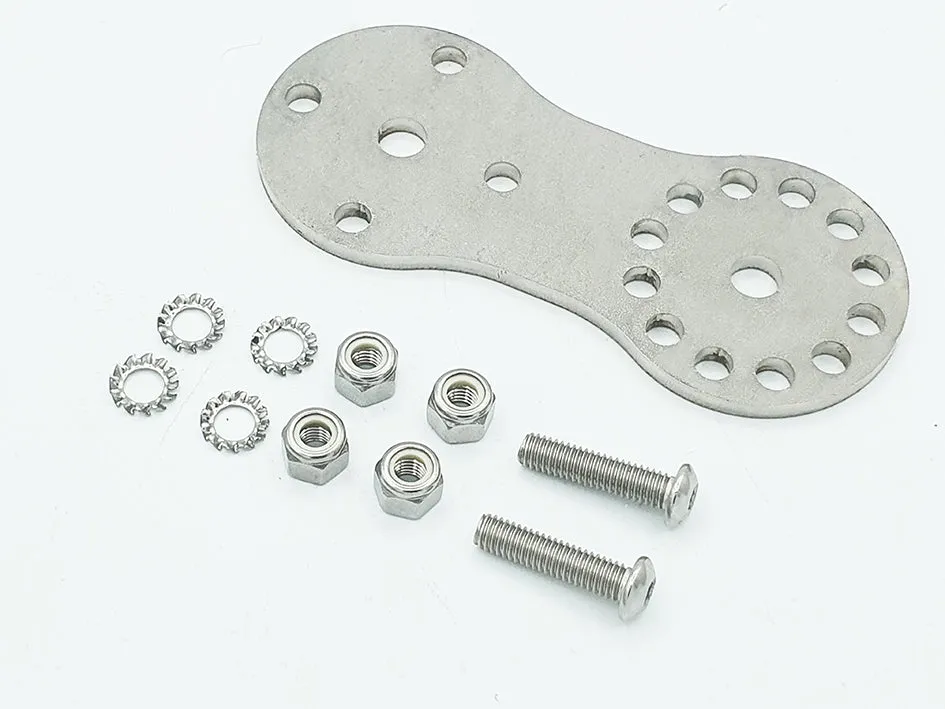

- set of actuator's fixing brackets

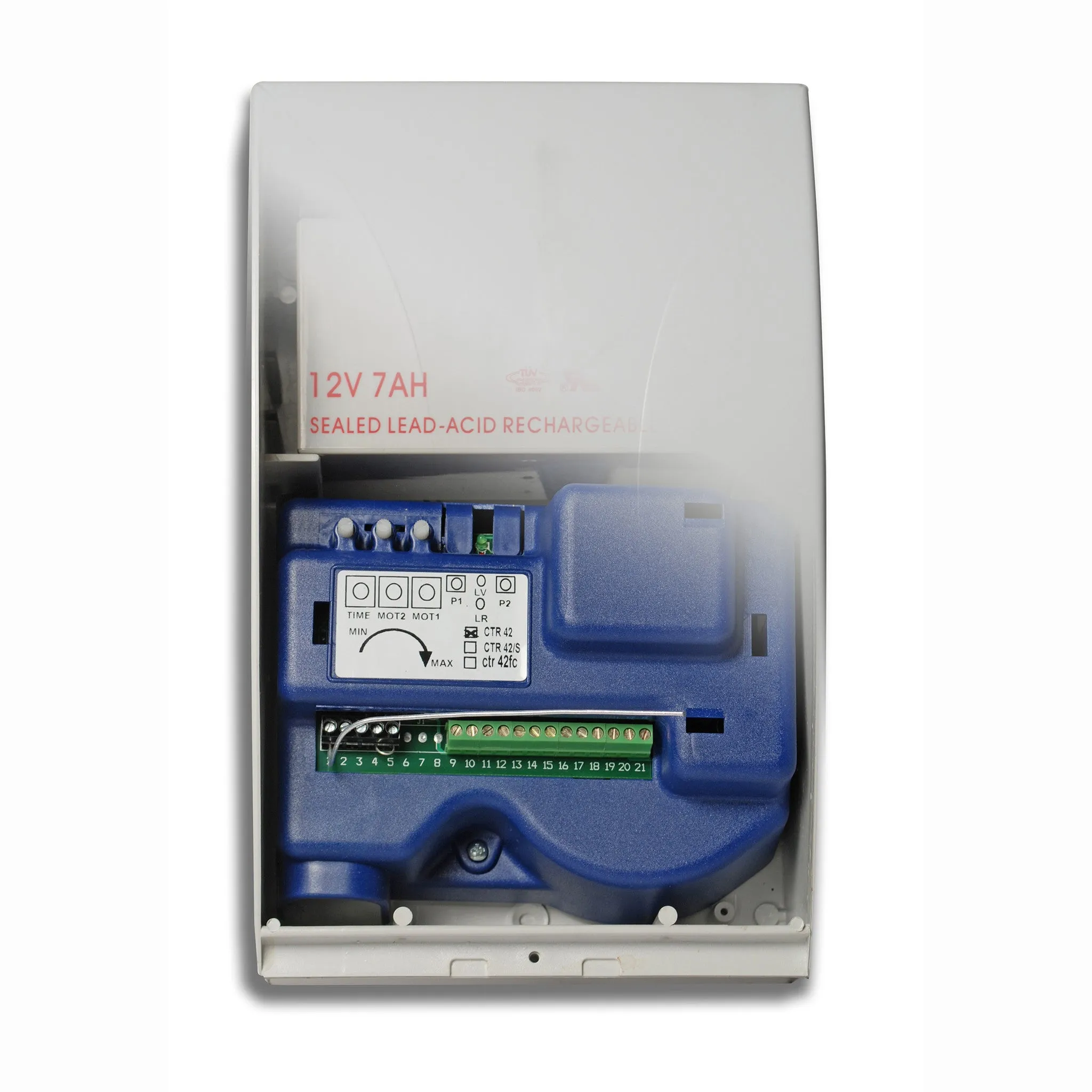

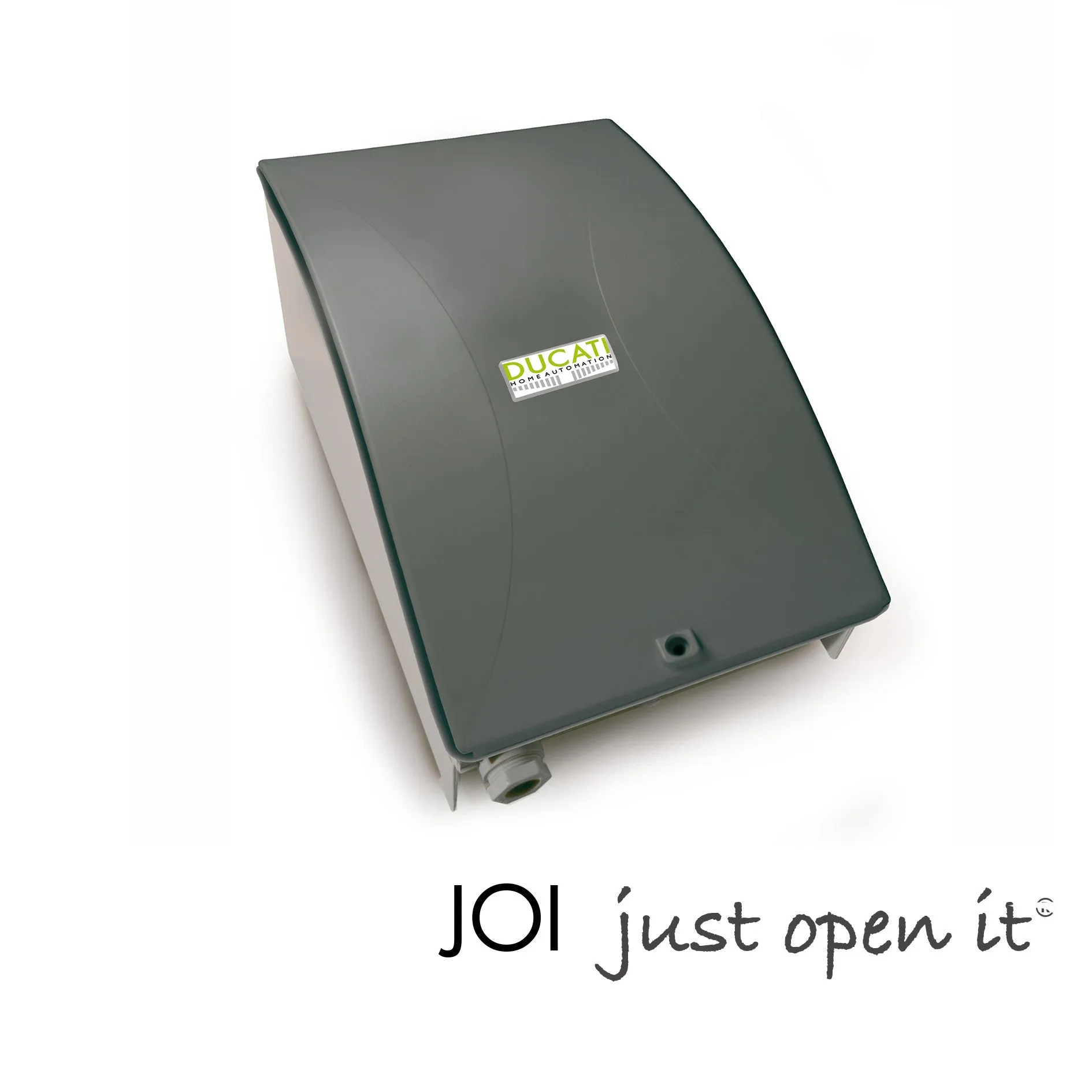

- 1x KONTROL 9048 2.0 large control box with electronic board, toroidal transformer, integrated radio receiver

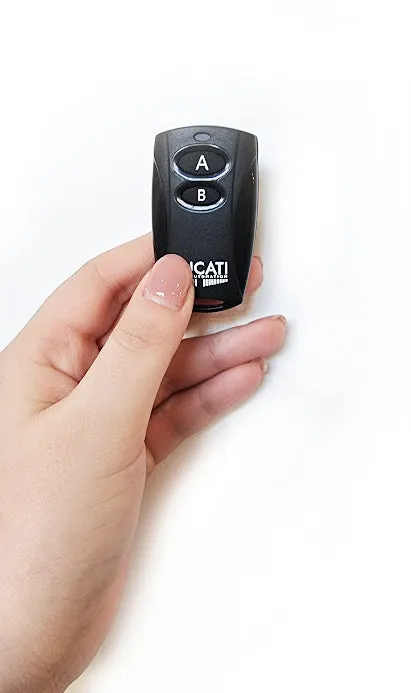

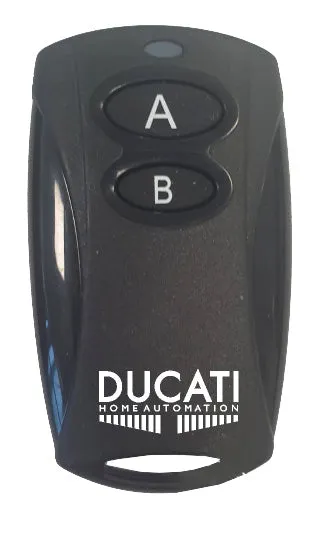

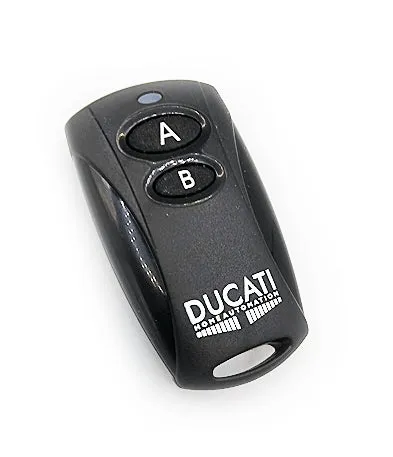

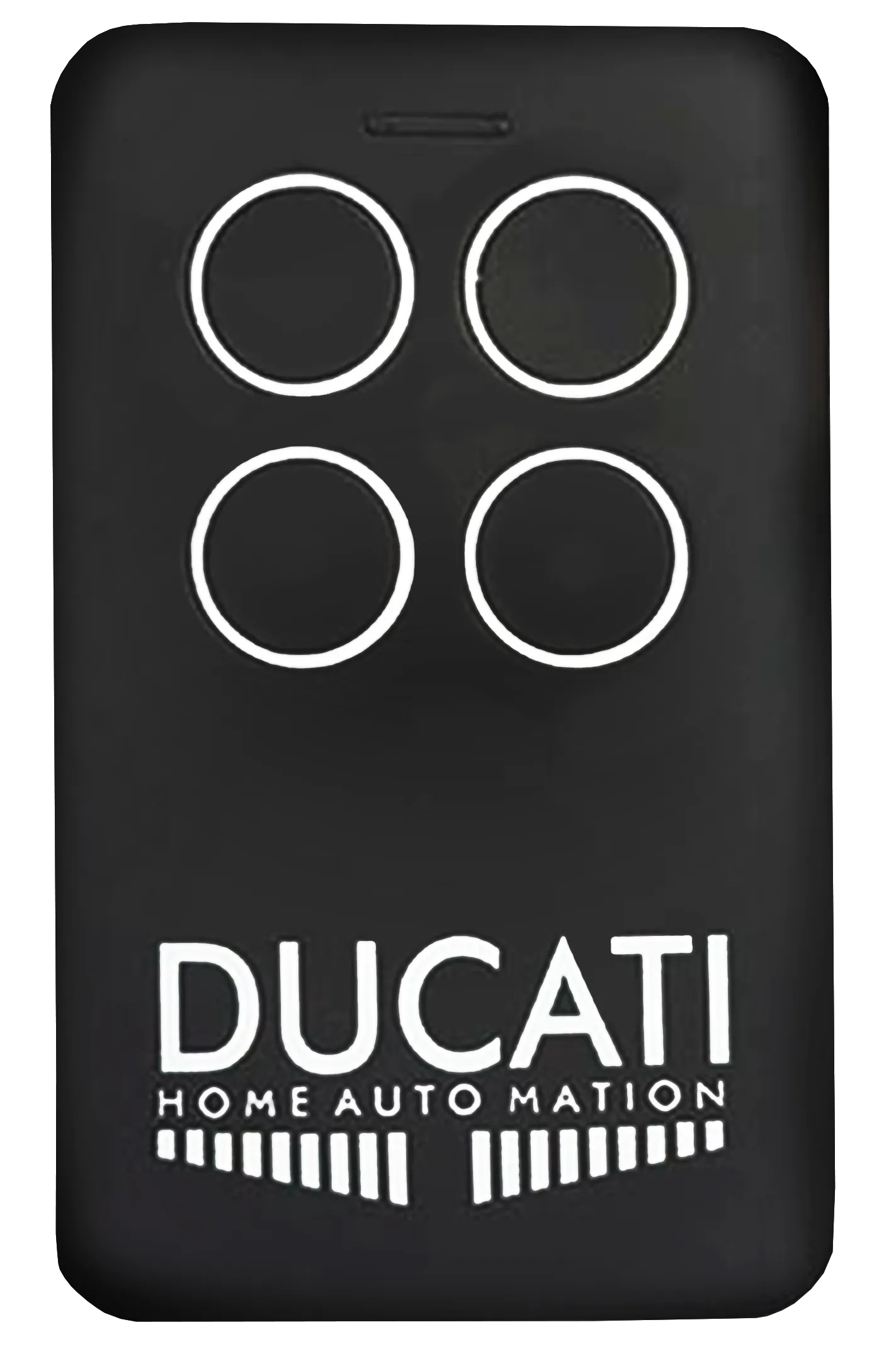

- 2x - 2 buttons 433,92 Mhz rolling code radio transmitters

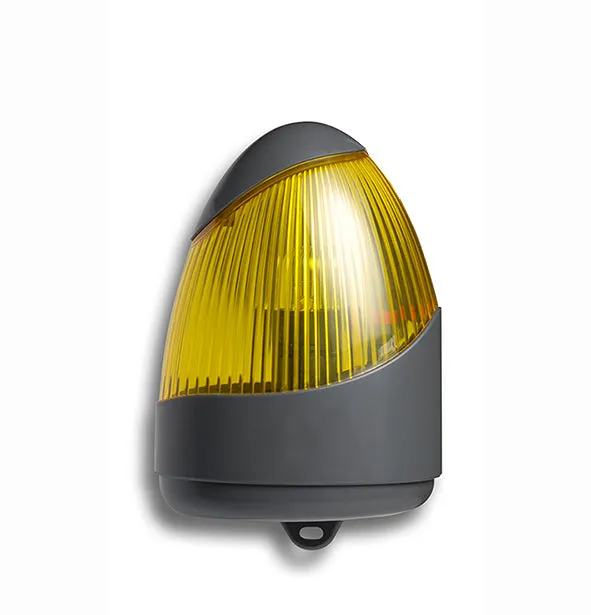

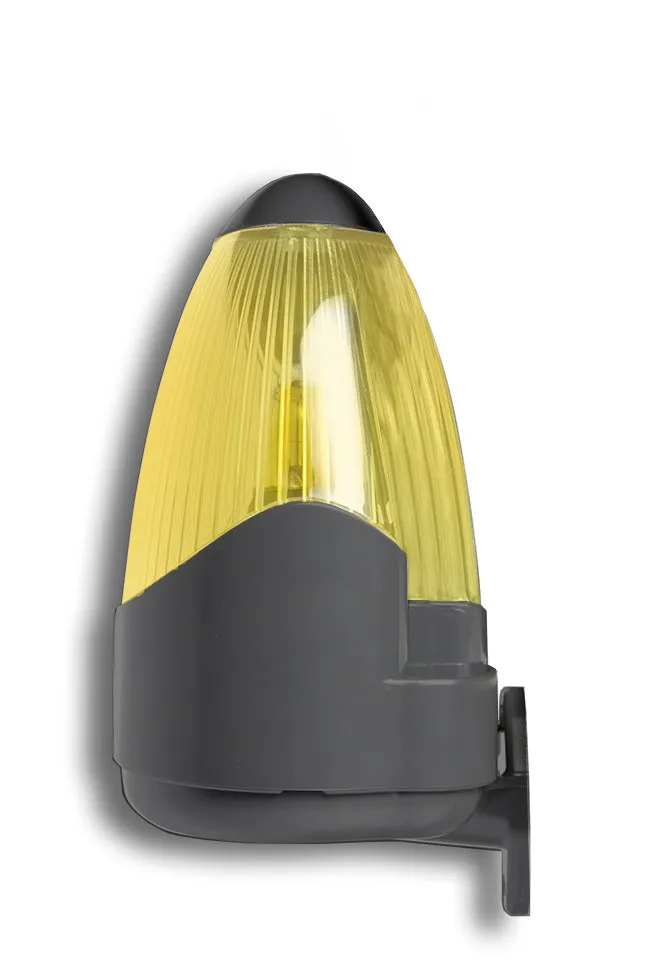

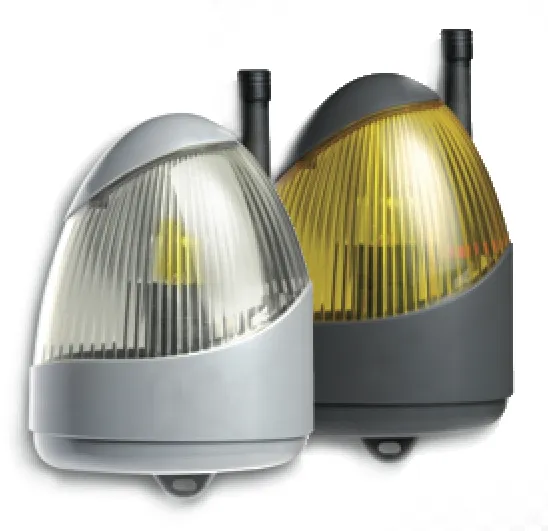

- 1x - blinking light

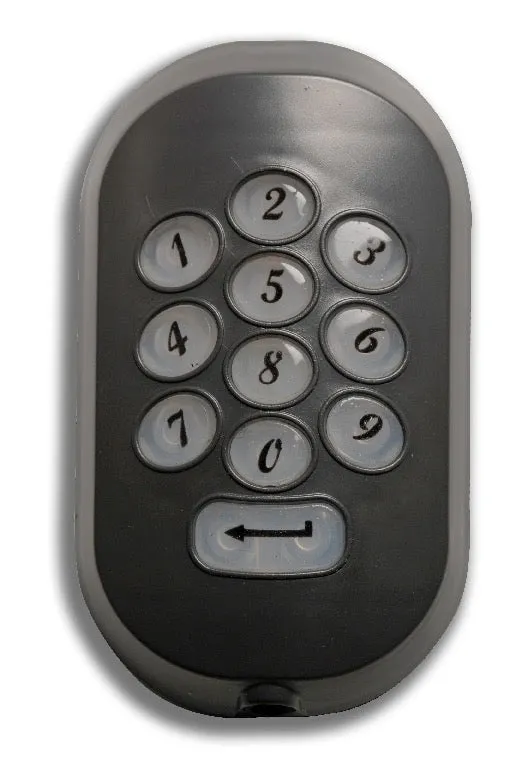

- 1x radio keypad ( wireless)

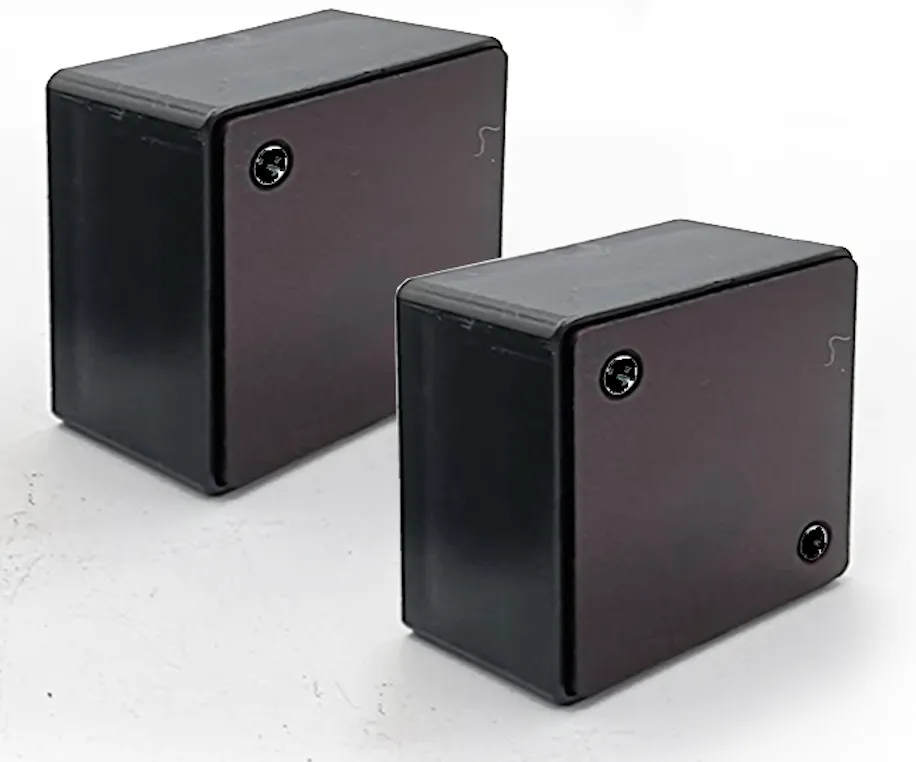

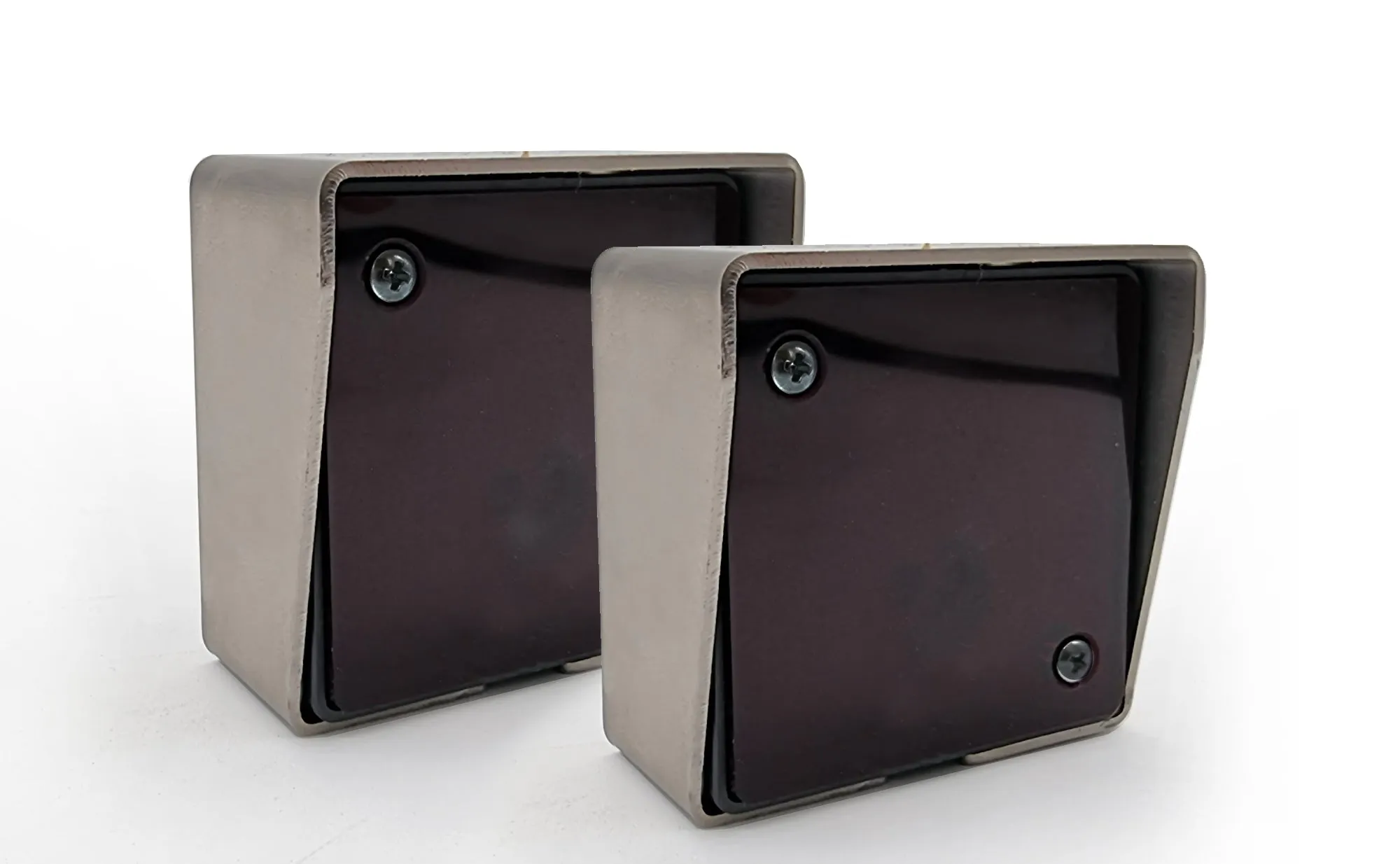

- 1 - pair ofsafety infrared photocells
- 1x key for manual emergency release
- 1x instruction manual
Features
- POWERFUL 500mm stroke actuators ( choose 12V or 24V version)
- Quick closing and opening. Open your door faster than ever (24V version)!
- Double speed with SOFT STOP
- SOFT STOP adjustment: you can postpose/anticipate the slowdown phase
- Obstacle detection sensitivity adjustment
- Inverse movement by obstacle detection while closing
- Control unit with integrated battery housing compartment
- Integrated battery charger on board: just ready for connection to 1 x 12V battery ( for 12V version) or 2 x 12V emergency batteries in series connected( for 24V version). In case of power failure works autonomously up to 3 days
- Integrated solar panel management: the card is a just ready to operate autonomously powered by solar panel. NOTE: For 12V version add a standard 12V battery 1 x 12V min.10W solar panel. For 24V version add 2 x 12V batteries in series connected 24V min.20W solar panel. No extra module needed
- Low consumption technology: only 0,07W stand-by consumption! Protect the environment, reduces waste of energy and gives long lasting autonomy with battery /solar panel use
- Automatic closing with adjustable time (you can vary the pause time from 1 to 100 seconds) or step-by-step ( push to open/ push to close)
- Adjustable motor power/ obstacle detection sensivity. By decreasing the power the gate opener will be more sensible in case of impact on an obstacle. The adjustment is very easy: just need to rotate potentiometer related to each motor.Status Warning light output: an external wired LED light can be connected to indicate if the gate is open, closed, closing or opening
- Ideal for a safe, quick and easy installation: the system is electrocution risk-free.
- heavy duty opener: can work in continuous cycles without overheating
- Adjustment of the time lag between the two doors
- Pedestrian opening (1 partial opening the wing to allow the pedestrian crossing only) can be controlled by remote control or wired control.
- Possibility of connecting an external timed courtesy light (example: garden light)
- The gate is automatically locked in closed position ( irreversibile system).
- Electro-lock is not needed, but recommended for wing longer than 2,8m each. Compatible with 12V electric-lock ( Booster required)
- Made in Italy - All components are manufactured in the company to warranty high quality and reliability.
- After sale service and assistance provided directly by manufacturer without intermediaries
- Easy self-storing of the remotes controls by pushing one button
- Safety is ensured by an sensitive amperometrical obstacle detection system and pressure control. Photocells ( safety beans) are no longer mandatory. Photocells are an optional accessory that can be helpful to prevent scratches to the painting of vehicles left in the vicinity of a moving gate. (EN13241-1: 2003 A1 ( April 2011 ) EN12453 : 2002 EN12445 : 2000)
- : product certified on all points of the current European regulations. Notify body as NEMKO / INTERTEK test reports & certificates available on request
- Totally in house designed software and hardware are focused on reduce energy consumption and with attention to the absolute reliability using innovative components of the latest generation as our High quality radio receiver hybrid
- Ducati chooses to use toroidal transformers only to achieve maximum reliability and safety by power surges and ESD. Our Standard 230V-50Hz transformer is also available in 110V/60Hz version.
- Manual release system by universal triangular key
Technical data
ACTUATOR TECHNICAL DATA
ELECROMECHANICAL ACTUATOR EVO 700
| dc motor (24V version) | 120W (240W) |
| max pushing & power | 2400N (4800N) |
| Stroke | 500mm |
| motor speed (24V version) | 1,5mm (2cm/sec) |
| telescopic actuator | - |
| working cycles limit | continuous use/ no limits |
| working temperature | -20°C/ 50°C |
| max wing length | 4m each |
| max.wing weight (24V version) | 250kg each leaf ( 350kg each) |
| max. opening angle | 137° |
| automatic wing lock | √ irreversible actuator |
| manual release system | √ by triangular key |
| Compatible with gate opening towards outside | √ |
NOTE: the actuator will stop by amperometric detection system: it therefore requires mechanical limits to be installed on the floor to stop the gate wing in the open and closed position. Special actuator model in "FC" version are featured with on-board mechanical limits for the open & closed wing position.
CTH48 ELECTRONIC BOARD TECHNICAL DATA
(solar panel & battery management on board)
Versatile, operates by 3 type of power supply
| |
| toroidal transformer's Watts | 105W output 0-12V-24V |
| protection fuse | √10AF |
| transformer protection fuse | 0,8AT (1,2AT for 110V transformer) |
| use on single or double wing gate | √ |
| output services (24V version) | 12V (24V) |
| stand-by power consumption | 7mA |
| radio receiver | 2 channels ( 1 for full cycle opening, 1 for pedestrian access- partial 1 wing opening) |
| remote controls channels storage capacity | 20 codes |
| radio transmission protocol | DUCATI rolling code |
| radio frequency | 433,92MHz |
| remote control automatic learning | √ |
| on board antenna | √ |
| external antenna input | √ |
| automatic closure working mode | √ with adjustable pause time up to 100 sec. |
| step by step working | √ one pulse to open; one pulse to close |
| motor power adjustment | √ by potentiometer |
| SOFT STOP | √ adjustable by potentiometer |
| Speed (24V version) | 1,5cm/sec (DUCO FAST 2cm/sec) |
| Obstacle detection safety system (DUCO SAFE) | |
| ASR auto reversal system on obstacle detection | √ |
| Wings time lag adjustment | √ |
| In compliance with EU-CE norms | √ |
| timerized courtesy light output | √ |
| output for remote advising light of gate status | √ light on while gate is open, light off while gate is closed, fast blinking while closing, slow blinking while opening |
flashing light output (24V version) | √ max. 10W 12V lamp (10W 24W) blinks quickly while closing, blinks slowly while opening |
| electric lock output | √ additional booster needed |
| safety beam-photocells input (NC contact) | √ NC normally closed contact Note: use of special low consumption photocells is recommended: use only DUCATI low consumption photocells model 7120 |
| full cycle START input (NO contact) | √ |
| pedestrian cycle START input ( NO contact) | √ |
| Emergency STOP button input (NC contact) | √ |
Manual
to download general instruction manual
click to download installation diagram
click to download electronic board diagram
remote control instructions
CTH48 installation video
